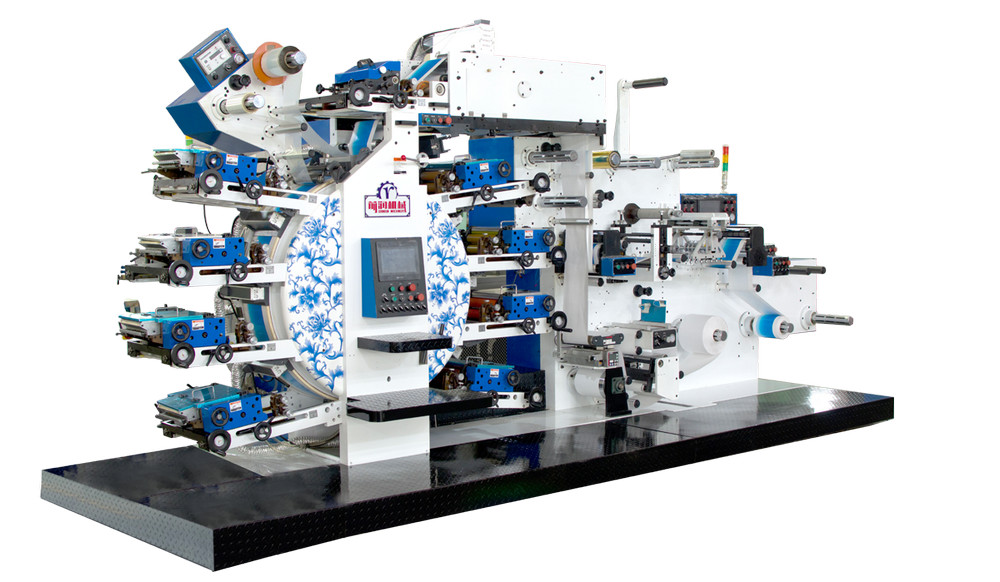

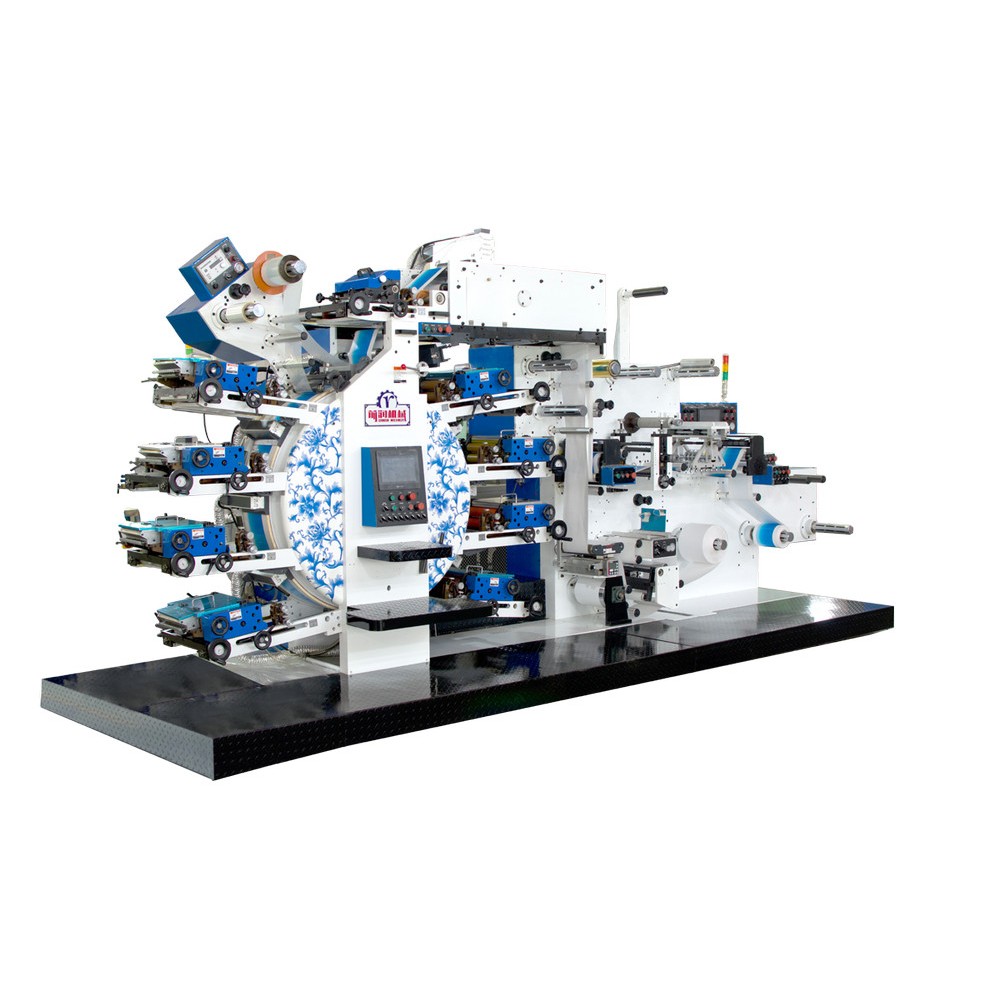

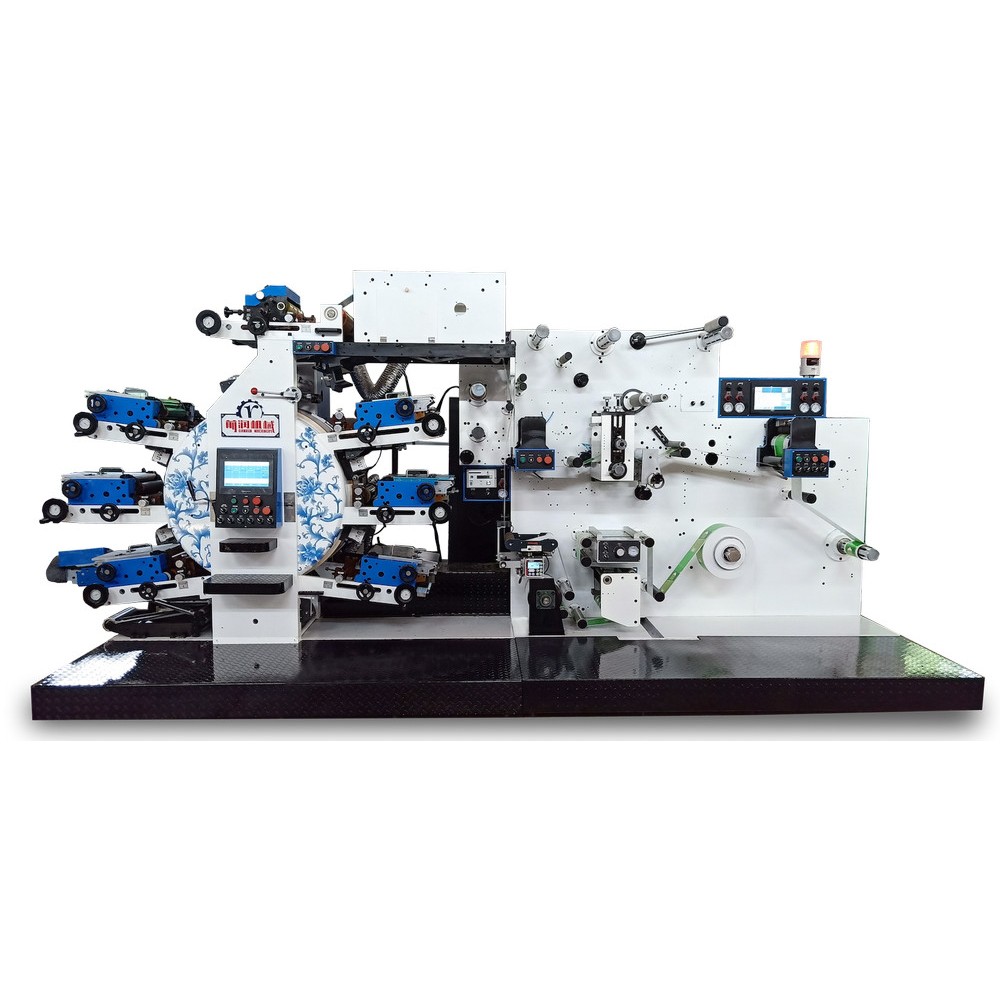

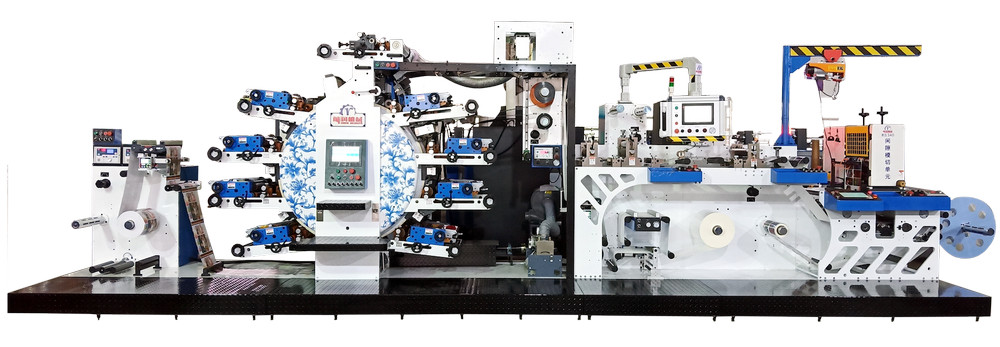

| Details of QIANRUN Letterpress Full Rotary Press | ||
|---|---|---|
| Manufacturer |
|
|
| Features |
- Unwinder – Printing(8 color, 2color printing on glue side,4color for both side) - Cold stamp – Lamination – Die cuter-Waster – Rewinder |
|
| Model | RS260-6C-1F (Option 1-12 colors) | RS340-8C-1F (Option 1-12 colors) |
| Printing accuracy | ±0.1mm | ±0.1mm |
| Max web width | 260mm | 340mm |
| Max printing width | 250mm | 330mm |
| Max printing length | 190.5-460.375mm | 190.5-460.375mm |
| Max speed | 100m/min | 100m/min |
| Ink | UV off set ink/UV flexo ink | UV off set ink/UV flexo ink |
| Centre impression drum | ø1000mm | ø1300mm |
| Unwind roll dia.max | 800mm | 800mm |
| Rewind roll dia.max | 800mm | 800mm |
| Machine size(L*M*X) mm | 6m*1.8m*2.25m(L*W*H) | 6.5m*2m*2.5m(L*W*H) |
| Net weight(Kg) | 6C-6500KGS | 8C-9500KG |
| Power(V/Kw) | 3phase 380Vac 45KVA 50/60HZ | 3phase 380Vac 45KVA 50/60HZ |
| Air pressure | 0.6Mpa(6kgf/cm ) | 0.6Mpa(6kgf/cm ) |
| Operation noise | 〈85db | 〈85db |
