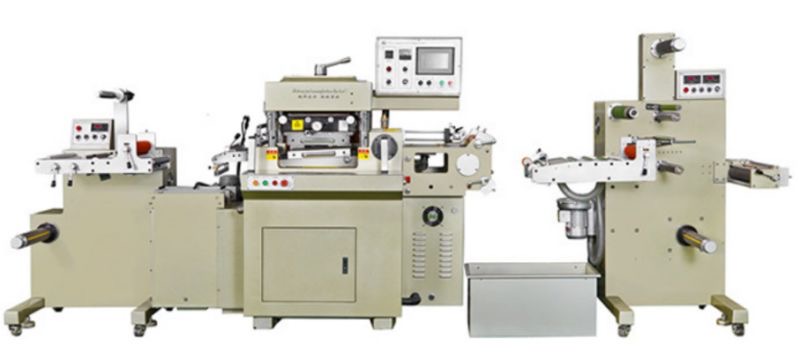

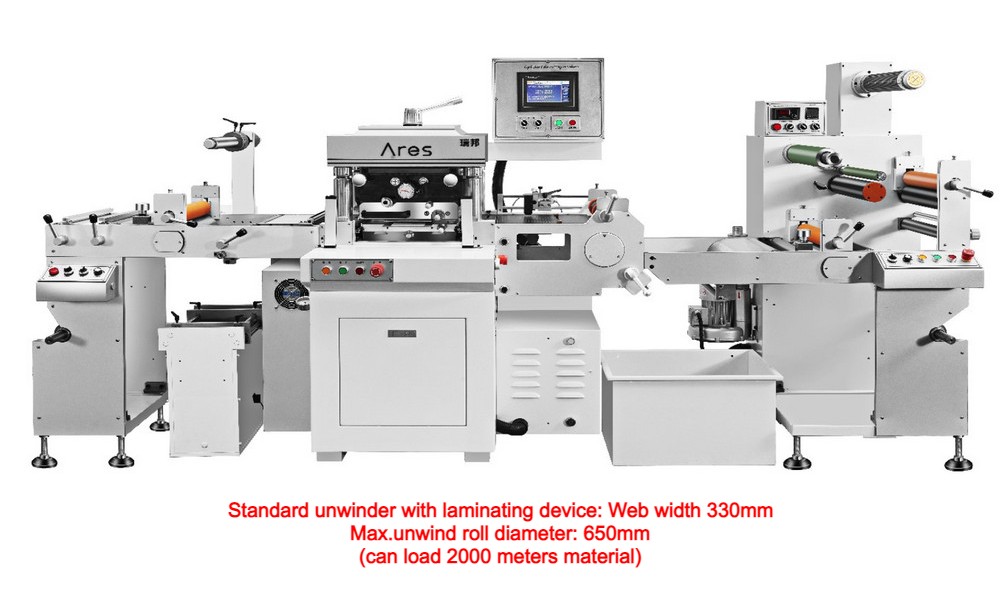

| REBORN Single station high speed die cutting machine | |
|---|---|
| Manufacturer |
|
| Model | RBJ-Ares M330FA |
| Die Chase Size | 330mm * 305mm |
| Voltage/Current | 3 phase 380V |
| Main Motor Power | 5.5KW |
| Gross Power | 13KW |
| Total Weight | About 2000KG |
| Max.Speed | 360 times/min depending on jobs |
| Applicable Blade Height | 7mm-23mm |
| Die Cutting Accuracy | +-0.1mm |

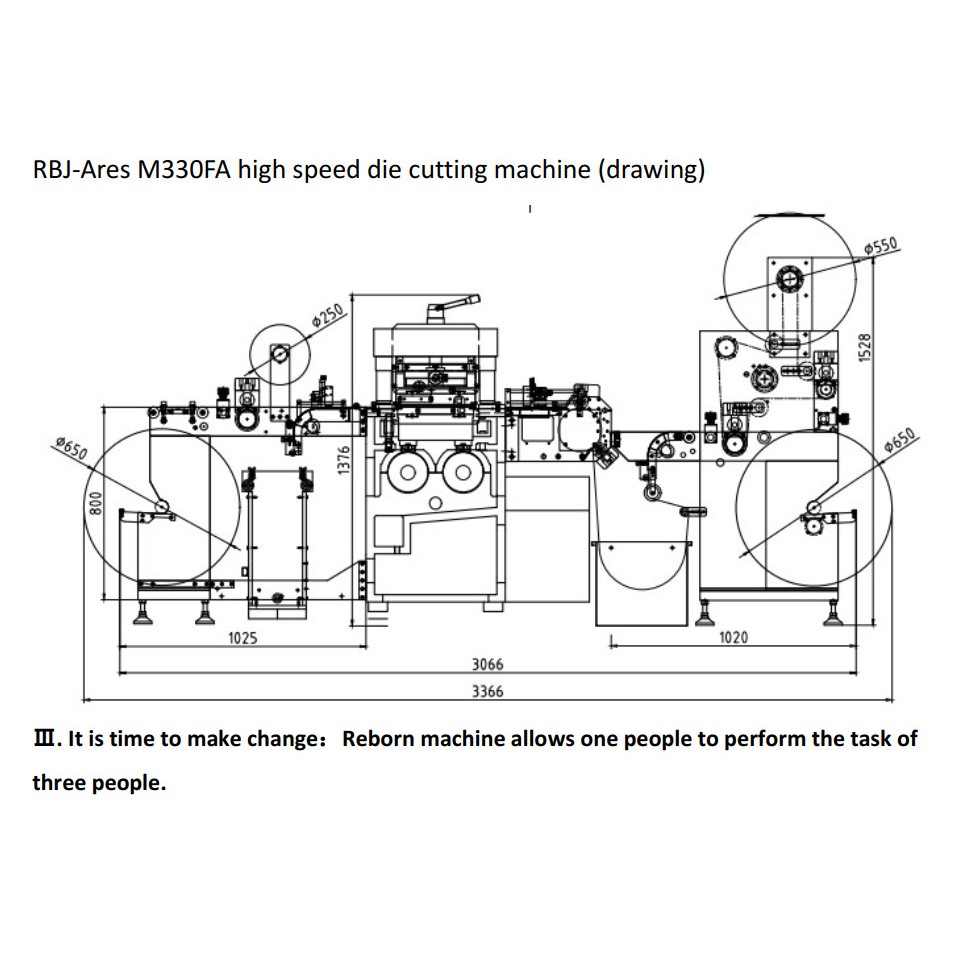

| Dimension | 4300 * 1300 * 1600mm |
| Max.unwind roll diameter& Max.rewind roll diameter | 650mm(can load 2000 meters material) |
| HS Code | 8441100000 |
| Configuration | |
|---|---|

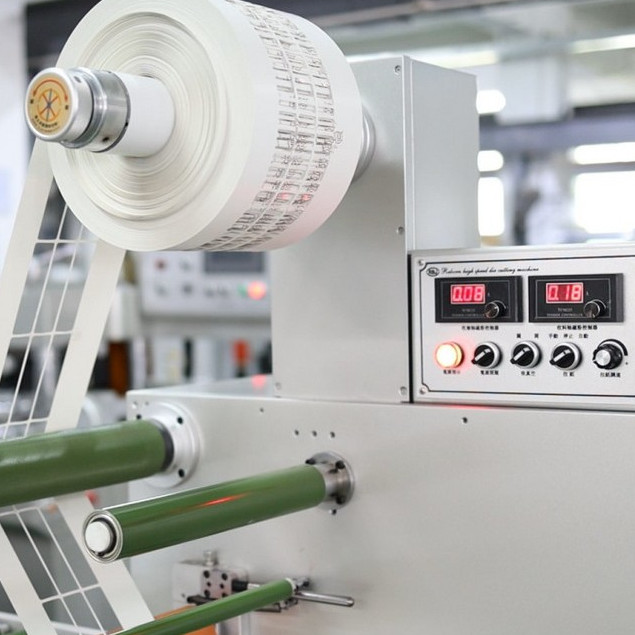

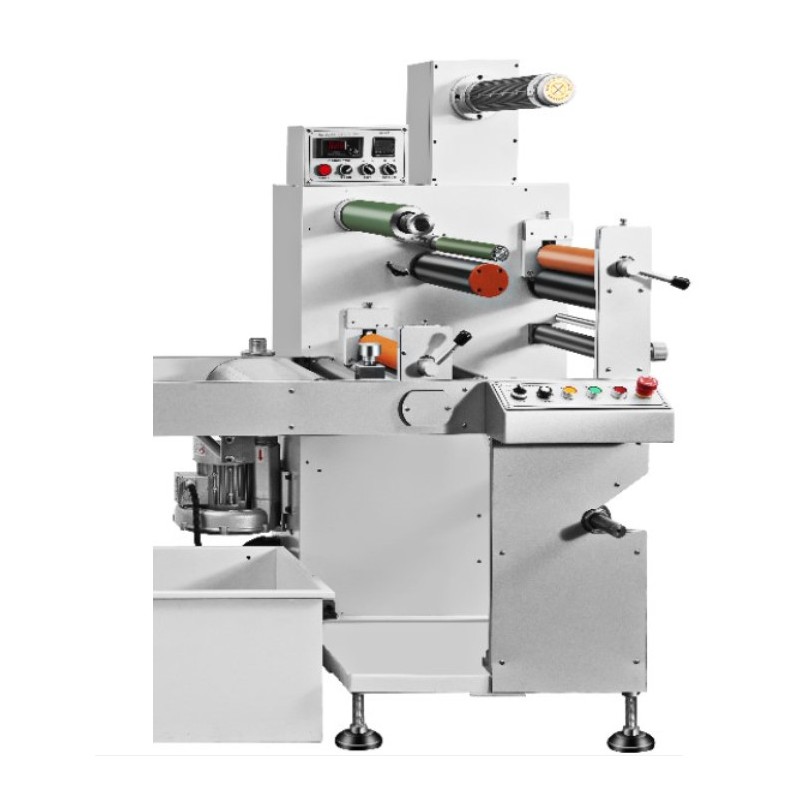

| Unwinder & Rewinder | 1 set |
| Vortex Tension Blower | 1 set |
| Die Cutting Mounting Plate(Upper & Lower) | 1 set |

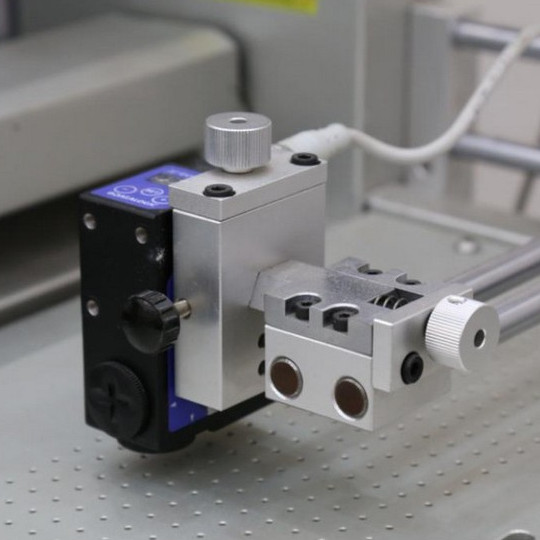

| Quadratic Tracking-Mark Sensor | 1 set |

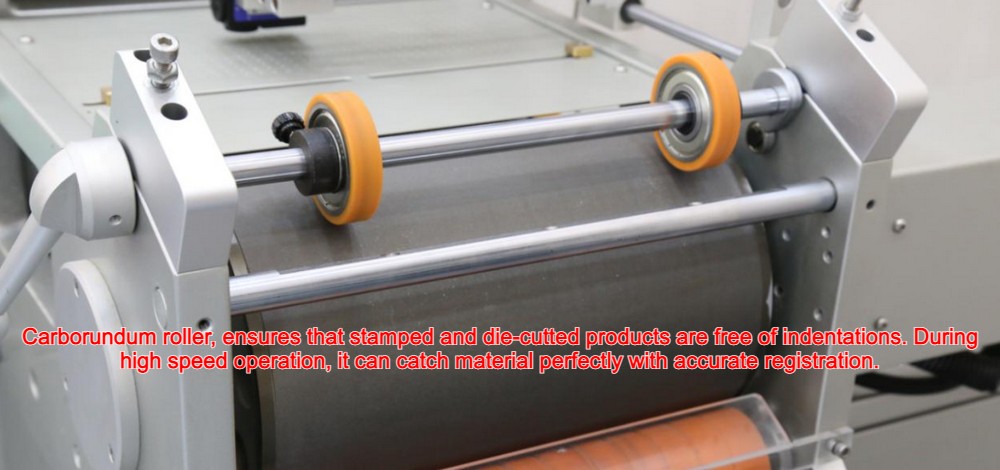

| Carborundum Roller | 1 pcs |
| Human Machine Interface(HMI) | 1 set |
| Clamping Wheels | 1 set |
| Horizontal Rewinder Induction Box | 1 set |
| Matrix Removal | 1 set |

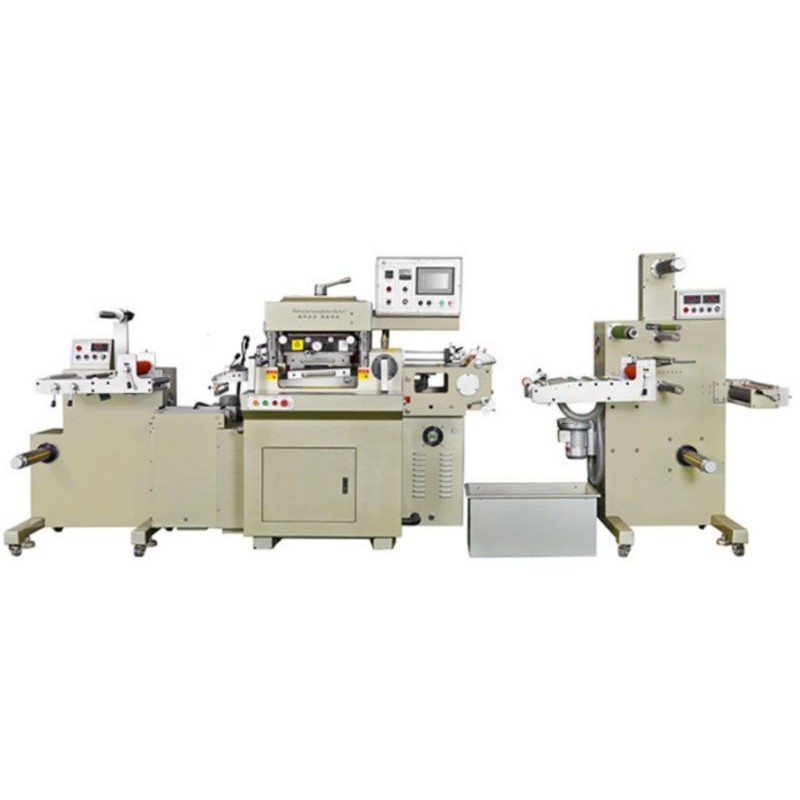

| REBORN High Speed Die Cut Machine | |
|---|---|
| Manufacturer |
|
| Model | RBJ-330A / RBJ-330B(Export Model) |
| Paper Width | 330mm |
| Max. Speed | 370 impression/min |
| Max. Die Cut Area | 320mm x 320m |
| Max. Unwind | Dia.600mm |
| Max. Rewind | Dia.600mm |
| Main Motor | 7.5KW |
| Standard Accessories |
- Unwinder Unit - Laminate Unit - Die Cut Unit - Digital Servo Feeding System( Yaskawa – Japan) - Touch Screen Main Controller - Scanner For 2nd Pass Feeding System - Waste Off Unit - Rewinding Unit |
