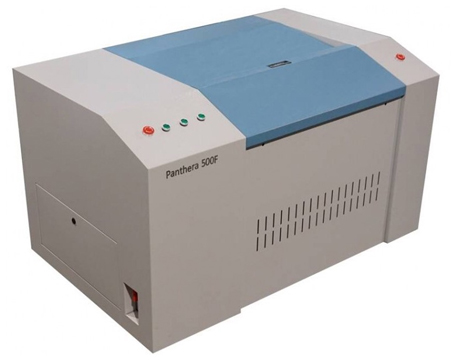

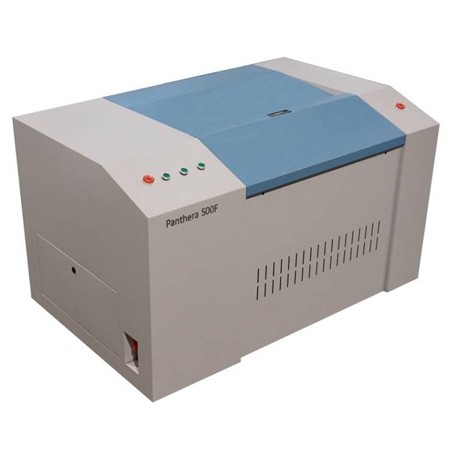

| Panthera CTP Machine | |
|---|---|
| Manufacturer |
|
| Type | 500G |
| Plate Type | Digital flexographic plate, Digital resin plate, Thermal plate |
| Exposure speed | 1-3 m square /hour |
| Resolution | 2540dpi (4000 dpi optional) |
| Drum architecture | External |
| Plate Size | Max: 670 x 640mm ; Min: 250 x 254mm |
| Plate Thickness |
- Digital flexographic plate, Digital resin plate: 0.7-3mm - Thermal plate: 0.15-0.3mm adjusting automatically |
| Machine dimension | 1260 L x 1500 W x 1180 H mm |
| Weight | 550kg |
| Environment | Temperature 24-27 C, relative humidity 40-70% |
| Power Supply | AC 220V +/-10%, 4KW |
